Electrical Connectors for Bed Control Pendants
Scroll Down to see a sampling of more than 30 plugs and electrical connectors for bed control pendants and electric hand control cases.
Roll your mouse over an image for a larger view.
  |
  |
  |
  |
  |
| A 12 pin BEAU 3300 / CINCH 300 |
C 10 pin BEAU 3300 / CINCH 300 |
D 8 pin BEAU 3300 / CINCH 300 |

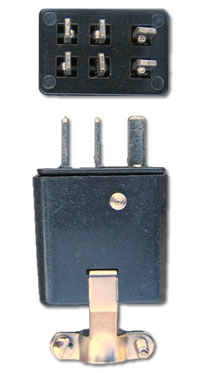

E 6 pin BEAU 3300 / CINCH 300 |
F 12 pin BURNDY style connector |
  |
  |
  |
  |
  |
| G 9 pin MOLEX style connector |
H 5 pin AMPHENOL style connector |
J 8 pin AMPHENOL style connector |
N 15 pin MOLEX style connector |
O 12 pin MOLEX style connector |
  |
  |
  |
  |
  |
| P 6 pin MOLEX connector with latching ears |
Q 14 pin AMP CPC style connector |
R 9 pin AMP MATE-N-LOCK connector |
S DB 9 socket (female) connector |
T 8 circuit MOLEX MINI-FIT connector |
  |
  |
  |
  |
  |
| U 6 circuit modular connector |
V 6 pin BURNDY connector |
W 5 pin AMP printed circuit board connector |
X 6 pin AMP MATE-N-LOCK |
Z 6 pin BEAU 3300 / CINCH 300 |
  |
  |
  |
  |
  |
| AC 8 circuit modular connector |
AE 9 circuit AMP MR series connector |
AF 6 circuit AMP MTA 90 degree connector |
AH 10 circuit BERG ribbon cable connector |
AI 9 circuit female AMP CPC connector |
  |
  |
 |
  |
 |
| AL Deltron 8 pin DIN locking |

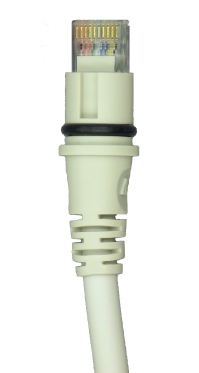

AP 10 circuit modular connector with overmold |
AQ 8 pin AMP CPC style connector |
AR 12 pin AMP MATE-N-LOCK connectpr |
AS DB 25 male (pins) connector with thumb screws |
 |
 |
 |
 |
 |
| AT 8 pin DIN connector with overmold (Note: Horseshoe shape pin configuration) |
AU DB 9 socket (female) connector |
AV DB 15 Males (pins) connector with Thumb Screws |
AW Deltron 3 pin DIN locking |
AY 5 pin DIN 90 degree locking |
 |
 |
 |
 |
 |
| AZ 5 pin DIN 90 degree non-locking |
BA DB 9 pin (male) connector |
BJ 13 pin DIN 90 Degree |
BR HD DB15 (High Density) socket (female) connector Without thumbscrews |
BR HD DB15 (High Density) socket (female) connector Without thumbscrews |
